USB Power Tester based on ATtiny45/85

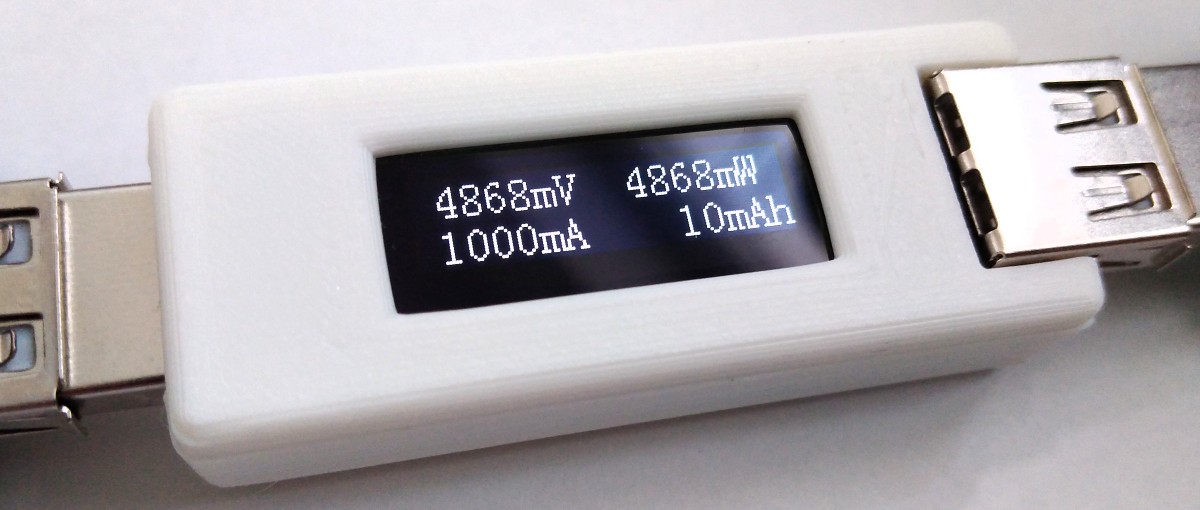

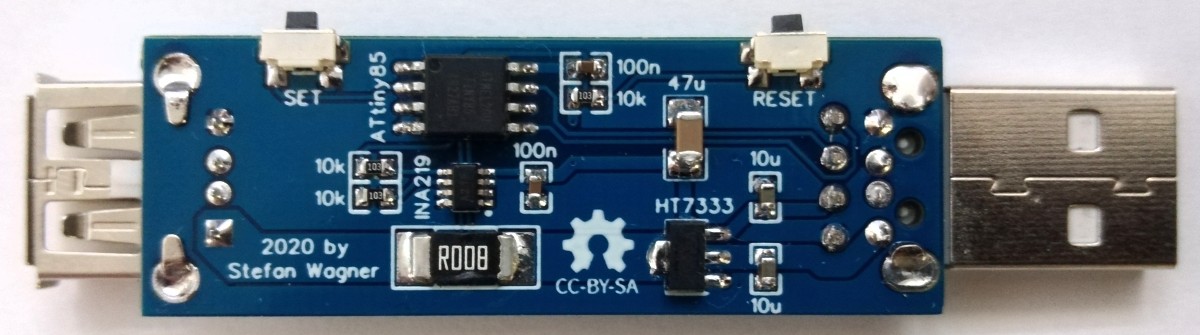

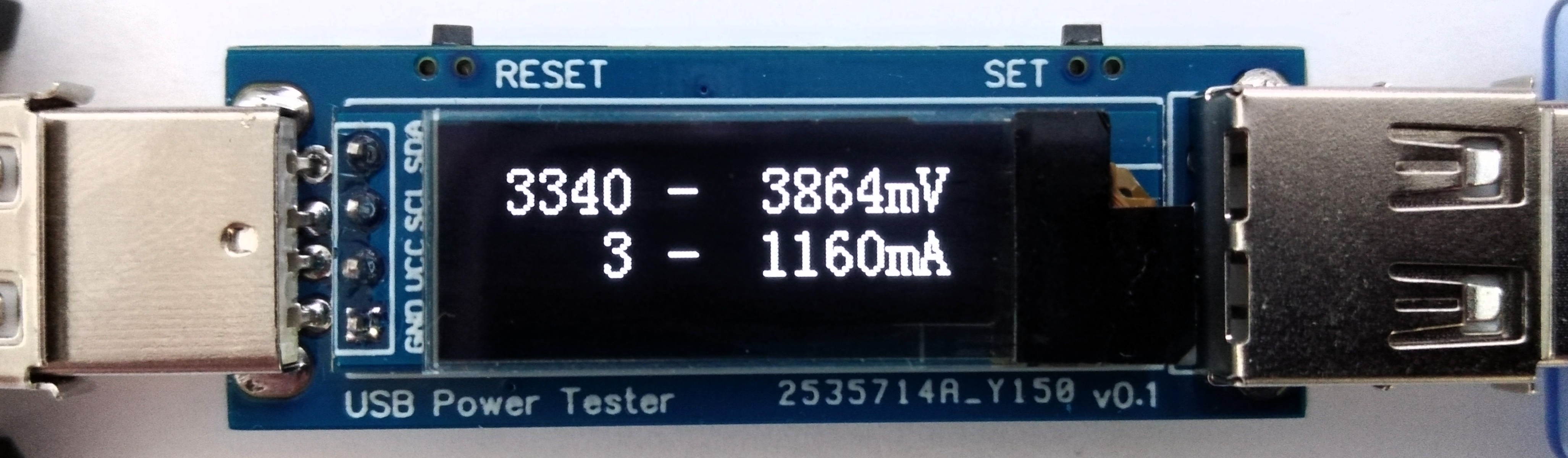

Simple USB Power Tester based on ATtiny45/85 andINA219. You can switch between different screens by pressing the SET button.

Project Video: https://youtu.be/QKx8Vn_IfjU

Project at EasyEDA: https://easyeda.com/wagiminator/attiny85-usb-tester

Parameter Value
Voltage 3V - 12V
Current max 5A
Resolution 4mV / 1mA

IMG_20200528_172038_x.jpg IMG_20200528_172119_x.jpg IMG_20200528_172221_x.jpg IMG_20200528_172239_x.jpg IMG_20200809_110421_x.jpg IMG_20200809_110600_x.jpg
