Integrates your Sencor SWS 12500, SWS16600, SWS 10500, GARNI, BRESSER weather stations seamlessly into Home Assistant

This integration will listen for data from your station and passes them to respective sensors. It also provides the ability to push data to Windy API or Pocasi Meteo.

Ecowitt support is coming in the next major release

As of April 11, 2026, Ecowitt stations are supported in the pre-release version v2.0.0pre1. You can download this pre-release in HACS under target version, where you can pick the exact version of the integration. Please be aware that this pre-release is really for testing purposes only.

---

Integration rename is planned for the next major release

The current name no longer reflects what the integration does. It was initially developed primarily for the SWS 12500 station, but it already supports other weather stations as well (Bresser, Garni and others), and Ecowitt support is on the way — so the current name has become misleading. The transition will be announced via an update, and I'm also planning to offer a full data migration from the existing integration to the new one, so you won't lose any of your historical data.

• The transition date hasn't been set yet, but it's currently expected to happen within the next ~2–3 months. At the moment, I'm working on a full refactor and general code cleanup. Looking further ahead, the goal is to have the integration fully incorporated into Home Assistant as a native component — meaning it won't need to be installed via HACS but will become part of the official Home Assistant distribution.

• I'm also looking for someone who owns an Ecowitt weather station and would be willing to help with testing the integration for these devices.

---

Warning — WSLink app (applies also to SWS 12500 with firmware > 3.0)

Please read the IMPORTANT note below.

For stations that use the WSLink app to set up the station and the WSLink API for resending data (also SWS 12500 stations manufactured in 2024 or later), you will need to install the WSLink SSL proxy add-on into your Home Assistant — unless you are already running Home Assistant in SSL mode or you have your own SSL proxy in front of Home Assistant.

---

[!IMPORTANT] The recommendation above does not apply to all stations. As is known by now, some stations — even when configured via the WSLink App — do not use the WSLink protocol to send data to custom servers. It can therefore be confusing how to configure your station, and for that case I made a simple debugging server (see below).

Not Sure How Your Station Sends Data?

If you are struggling with configuration and don't know which protocol your station uses (WSLink or PWS/WU), or whether it sends data over SSL or plain HTTP — use our public test server:

https://test-station.schizza.cz

1. Open the link above and create a new session.
2. Point your weather station to the generated subdomain address.
3. Within a few seconds the server will show you:
   • the protocol your station is using (WSLink or PWS/WU)
   • whether the request arrived over SSL or non-SSL
   • the full query string, headers, and payload your station sent

This information tells you exactly how to configure the integration in Home Assistant.

Quick Recommendations

Station sends via	Protocol	Recommended Setup
plain HTTP	PWS/WU	Point the station directly at Home Assistant — no proxy needed. Keep WSLink API unchecked (disabled).
plain HTTP	WSLink	Point the station directly at Home Assistant — no proxy needed. Enable WSLink API in settings.
HTTPS (SSL)	PWS/WU	Install the WSLink Proxy Add-on — it terminates TLS and forwards plain HTTP to Home Assistant. Keep WSLink API unchecked (disabled).
HTTPS (SSL)	WSLink	Install the WSLink Proxy Add-on — it terminates TLS and forwards plain HTTP to Home Assistant, and enable WSLink API.

— If the test server shows your station is sending over SSL, you need the WSLink Proxy Add-on. If it sends plain HTTP, you can connect directly.

Web server repo is reachable here: https://github.com/schizza/test-station-server

Requirements

• Weather station that supports sending data to custom server in their API (list of supported stations.)
• Configure station to send data directly to Home Assistant.
• If you want to push data to Windy, you have to create an account at Windy.
• If you want to resend data to Pocasi Meteo, you have to create accout at Pocasi Meteo

Examples of supported stations

• Sencor SWS 12500 Weather Station
• Sencor SWS 16600 WiFi SH
• SWS 10500 (newer firmware revisions are also supported via the WSLink SSL proxy add-on)
• Bresser stations that support custom server upload — this model is known to work, for example
• Garni stations with WSLink support or custom server support
• and a bunch of other models that aren't listed here are also supported

Supported sensors

The integration auto-creates sensors as soon as the station first sends data for them — new sensors trigger a notification in Home Assistant and are added to the entity list automatically.

Beyond the standard set (outdoor / indoor temperature and humidity, barometric pressure, wind speed / direction / gust, rain rate and daily / weekly / monthly / yearly totals, dew point, UV index, solar irradiance) the WSLink protocol also exposes:

• additional channels CH2 and CH3 for temperature and humidity
• WBGT index, heat index, wind chill
• sensor battery levels (outdoor, indoor, CH2)
• Formaldehyde (HCHO) in ppb and VOC level as a 1–5 air-quality index (1 = worst, 5 = best) from the WH46 / 7-in-1 air-quality combo sensor
• HCHO/VOC sensor battery reported as a percentage

HCHO / VOC entities are only created when the station reports the air-quality module as connected (t9cn = 1), so they don't clutter the device when no such sensor is attached.

Installation

For stations that send data through WSLink API

Make sure you have your Home Assistant configured in SSL mode or use WSLink SSL proxy addon to bypass SSL configuration of whole Home Assistant.

HACS installation

For installation with HACS, you have to first add a custom repository. You will need to enter the URL of this repository when prompted: https://github.com/schizza/SWS-12500-custom-component.

After adding this repository to HACS:

• Go to HACS -> Integrations
• Search for the integration Sencor SWS 12500 Weather station and download the integration.
• Restart Home Assistant
• Now go to Integrations and add new integration. Search for Sencor SWS 12500 Weather station and select it.

Manual installation

For manual installation you must have access to your Home Assistant's /config folder.

• Clone this repository or download the latest release here.

• Copy the custom_components/sws12500 folder to your config/custom_components folder in Home Assistant.

• Restart Home Assistant.

• Now go to Integrations and add new integration Sencor SWS 12500 Weather station

Configure your station in AP mode

This configuration example is for Sencor SWS12500 with FW < 3.0

For WSLink read this notes.

1. Hold the Wi-Fi button on the back of the station for 6 seconds until the AP will flash on the display.
2. Select your station from available APs on your computer.
3. Connect to the station's setup page: http://192.168.1.1 from your browser.

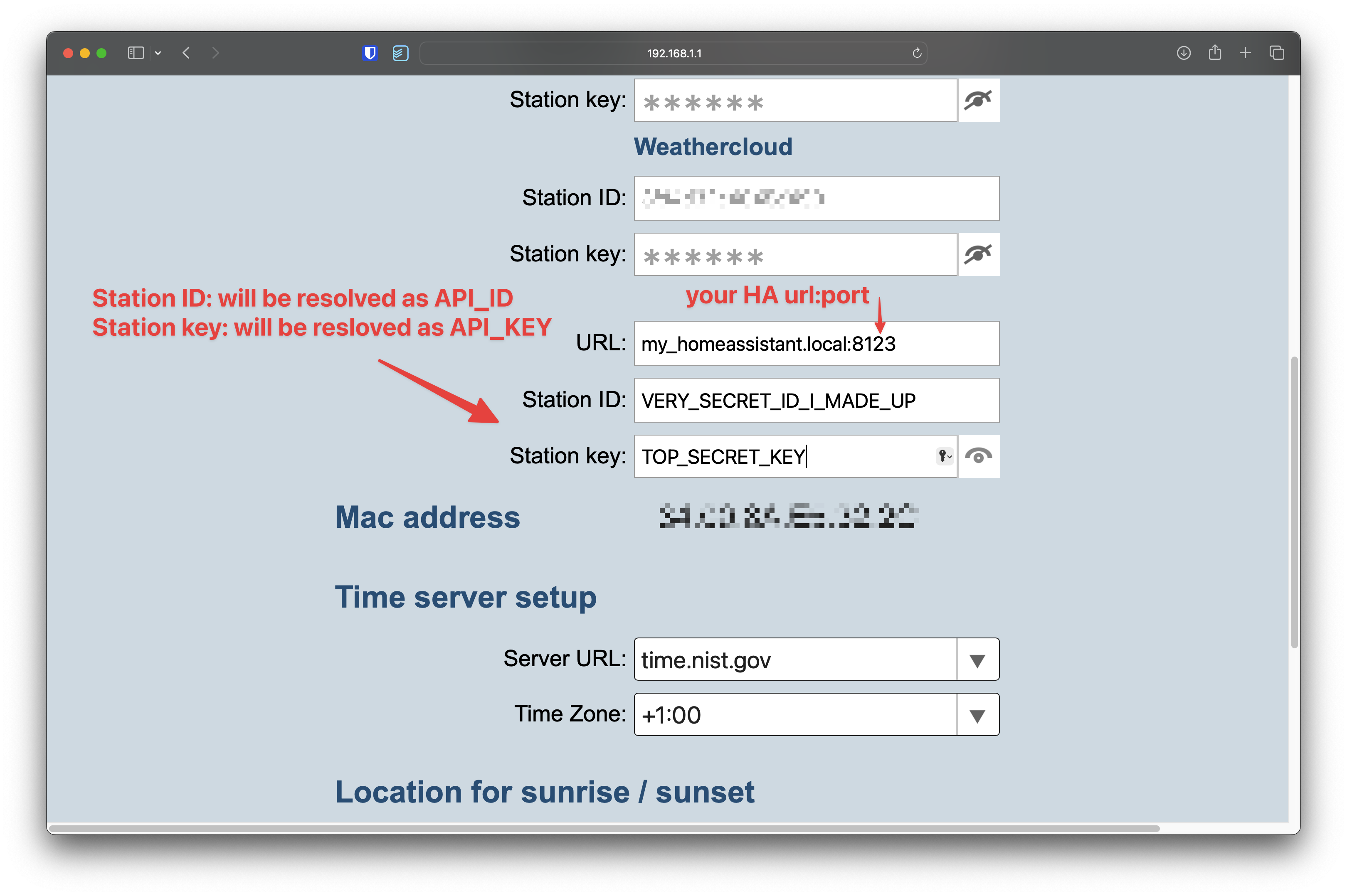

4. In the third URL section fill in the address to your local Home Assistant installation.
5. Create new ID and KEY. You can use online tool to generate random keys. (you will need them to configure integration to Home Assistant)
6. Save your configuration.

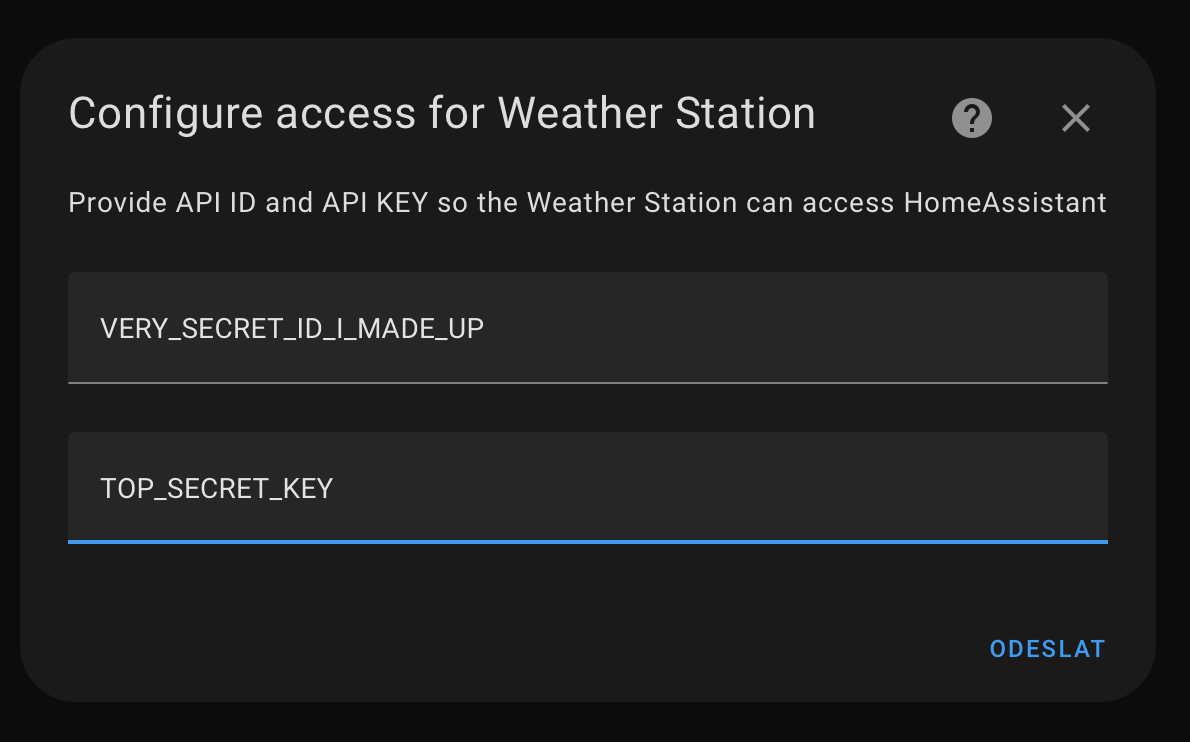

Once integration is added to Home Assistant, configuration dialog will ask you for API_ID and API_KEY as you set them in your station:

API_ID: ID in station's config
API_KEY: PASSWORD in station's config

If you change API ID or API KEY in the station, you have to reconfigure integration to accept data from your station.

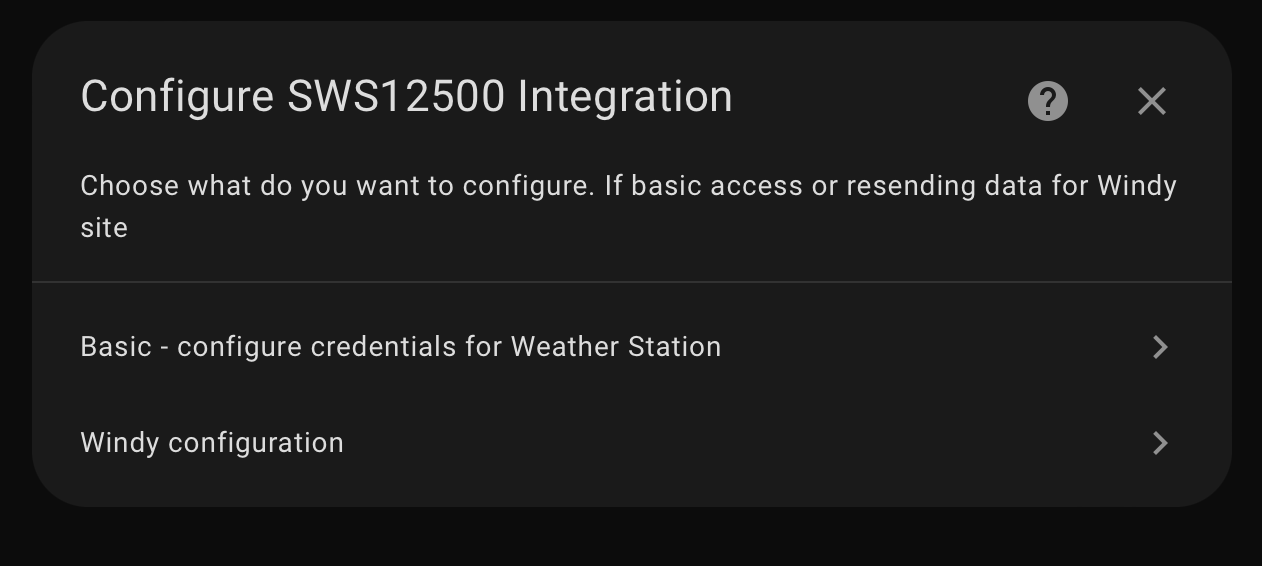

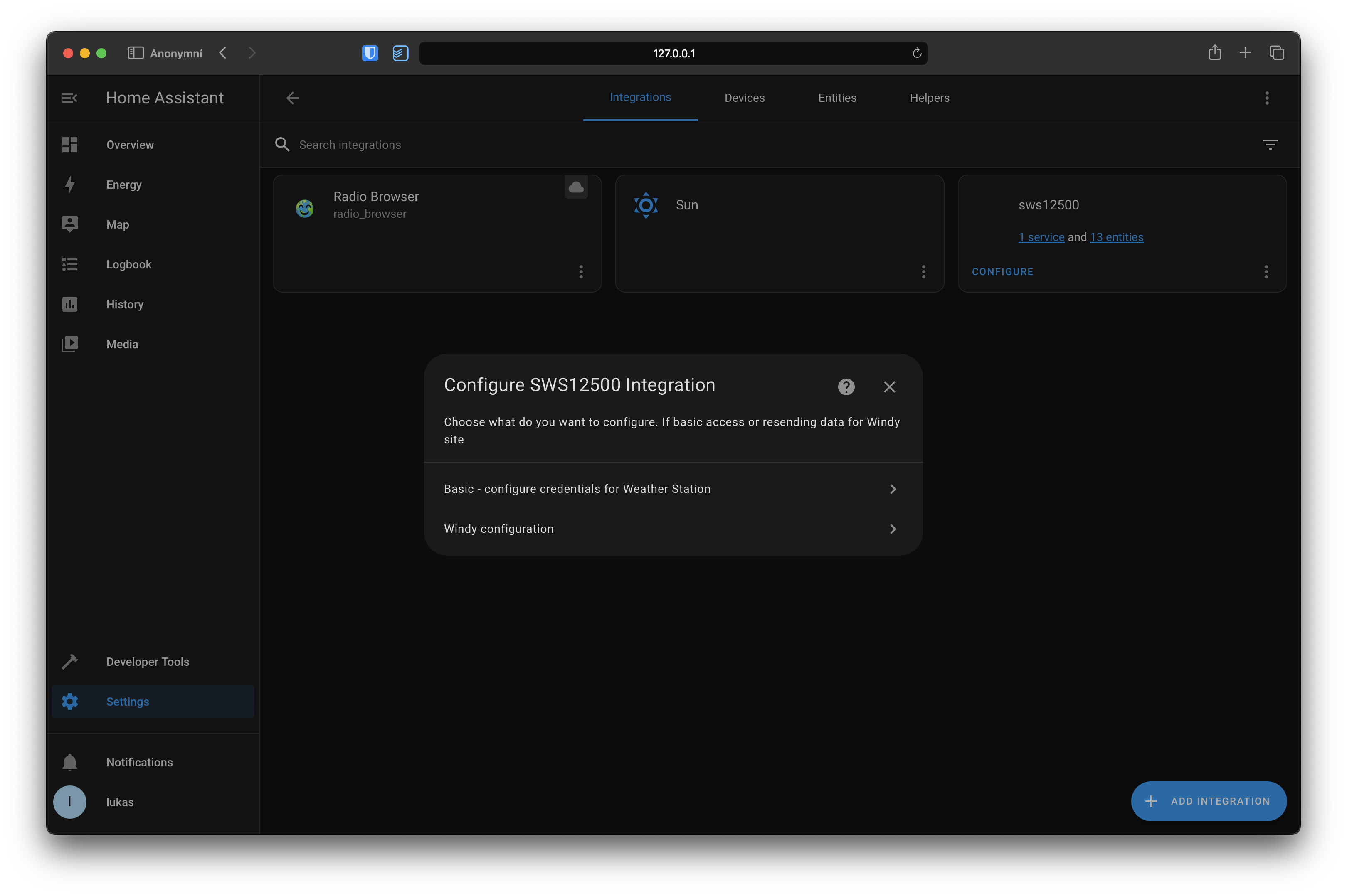

• In Settings -> Devices & services find SWS12500 and click Configure.
• In dialog box choose Basic - Configure credentials

As soon as the integration is added into Home Assistant it will listen for incoming data from the station and starts to fill sensors as soon as data will first arrive.

Upgrading from PWS to WSLink

If you upgrade your station — which was previously sending data in the PWS protocol — to a station that uses the WSLink protocol, you have to remove the integration and reinstall it. The WSLink protocol uses the metric scale instead of the imperial scale used in PWS, and deleting and reinstalling the integration makes sure the sensors are aware of the change of measurement scale.

• because sensor unique IDs stay the same, you will not lose any of your historical data

Resending data to Windy API

• First of all you need to create account at Windy stations.

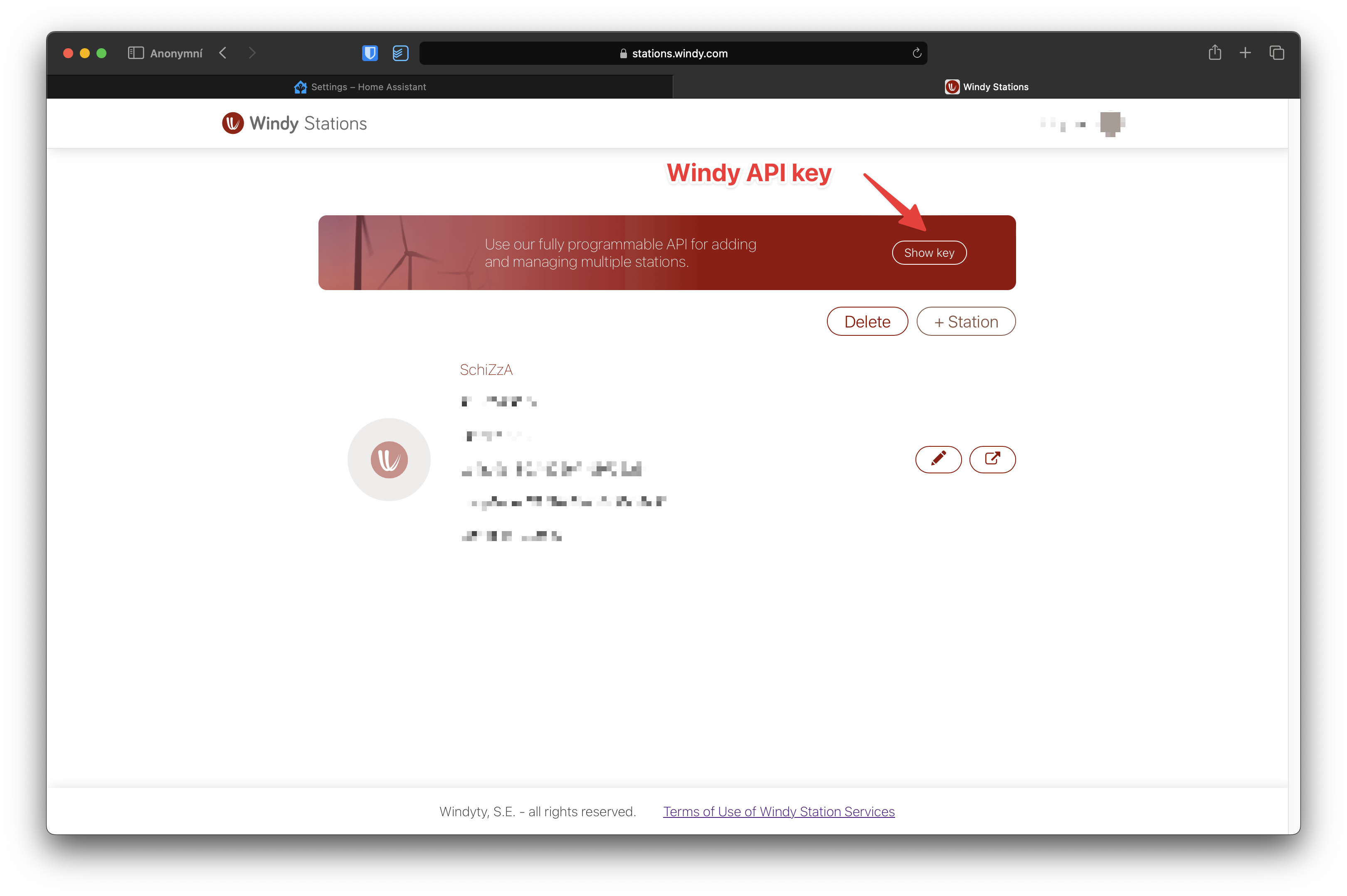

• Once you have an account created, copy your Windy API Key.

• In Settings -> Devices & services find SWS12500 and click Configure.

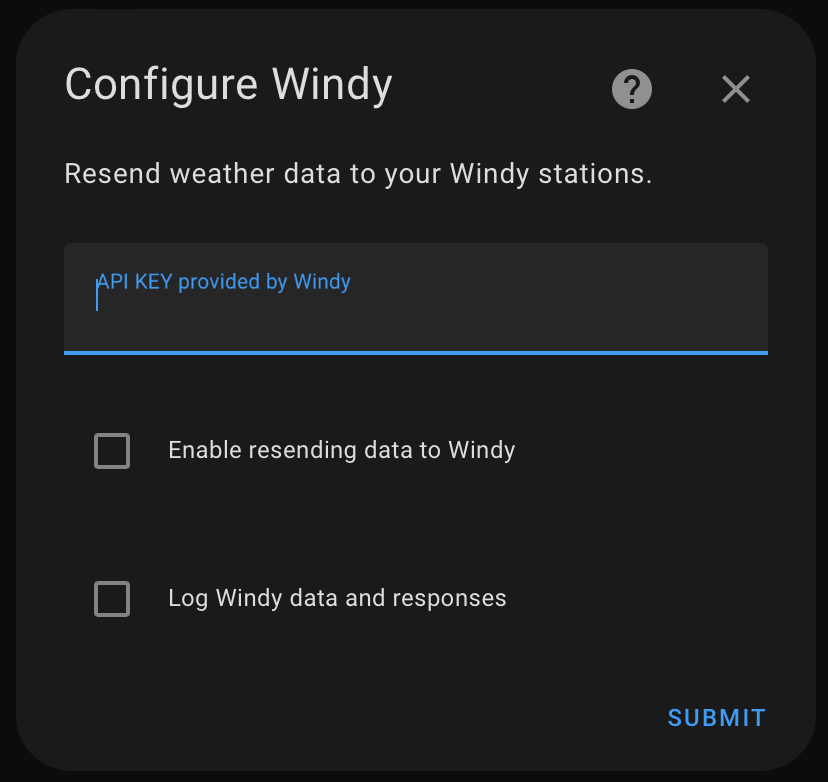

• In dialog box choose Windy configuration.

• Fill in Key you were provided at Windy stations.

• Tick Enable checkbox.

• You are done.

Resending data to Pocasi Meteo

• If you are willing to use Pocasi Meteo Application you can enable resending your data to their servers

• You must have account at Pocasi Meteo, where you will recieve ID and KEY, which are needed to connect to server

• In Settings -> Devices & services find SWS12500 and click Configure.

• In dialog box choose Pocasi Meteo configuration.

• Fill in ID and KEY you were provided at Pocasi Meteo.

• Tick Enable checkbox.

• You are done.

WSLink notes

If your station sends WSLink data over SSL (see the Quick Recommendations table above), Home Assistant has to be reachable over SSL too — either by running Home Assistant in SSL mode, or by putting it behind an SSL proxy. You can bypass whole-system SSL setup by using the WSLink SSL proxy add-on, which is made exactly for this integration to support WSLink on non-SSL installations of Home Assistant.

Configuration

• Set your station up as described above, but for HA port use the port the add-on is listening on (4443 by default) — not the port of your Home Assistant instance.

Home Assistant is at 192.168.0.2:8123
WSLink proxy add-on is listening on port 4443

→ set the station URL to: 192.168.0.2:4443

• Your station will send data to the SSL proxy and the add-on will handle the rest.

Most stations do not care about self-signed certificates on the server side.
